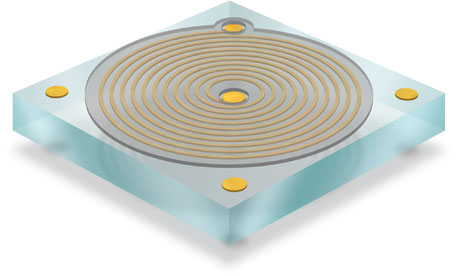

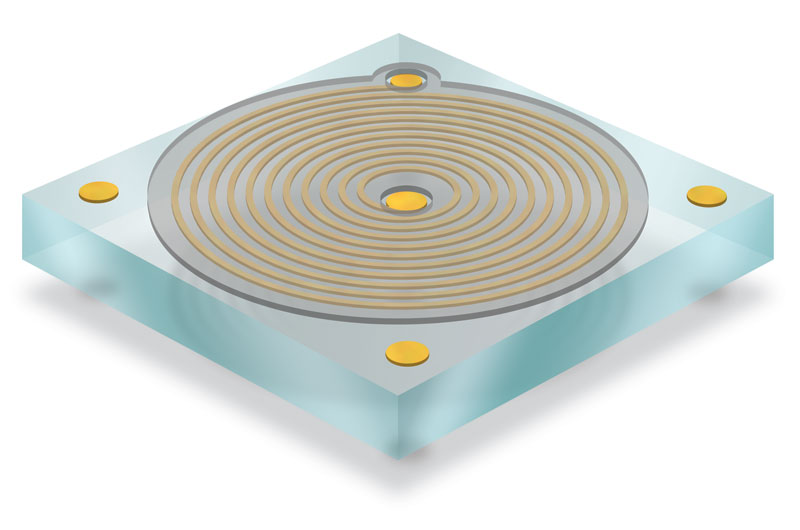

Inductor Coils

ATP introduces a new line of printed spiral inductor coils in a wide range of values from 2.2 nH to 112.7 nH. These coils have been modeled and optimized using advanced computer automated design tools to produce data and graphs to help you utilize these devices in your own thin-film or hybrid designs. These printed inductors can be used in a wide variety of applications from DC and RF filtering to gain shaping and equalization circuits. Use them in a new design approach or to enhance or modify a current design for a specific performance you desire!

These spiral inductors are designed with thick Au conductors on fused silica quartz to minimize series resistance and promote high Q values. The coils are offered with or without backside metallization to offer you the ability to mount in various applications, utilizing isolated or grounded configurations. Supporting graphs and data are available for these two configurations. They also have additional pads located around the coil to help you customize and fine tune in your final values desired. They are also protected with a polyimide coating to help resist in scratching, bridging or shorting during assembly and tuning.

If you do not see a value that fits your exact application, contact ATP Sales and we will custom fabricate the exact printed coil you desire.

Material: 0.010" (0.254 mm) Thick quartz/fused Silica (SiO2)
Metalization A Side:
• TiW = 400 to 800 Å (0.04–0.08 Microns)
• Au = 250µ" (6.35 Microns) minimum
No Metalization on B Side
Critical Dimensions:
• Line = 0.0006" ±0.0001 (0.01524 mm ±0.00254)
• Gap = 0.001" ±0.0001 (0.0254 mm ±0.00254)
Polyimide = 3–6 Microns

  Inductor Coil

Inductor Coil




Request a quote for the ATP Inductor Coils. Indicate the quantities below, then submit your RFQ with the Request Quote button, at right.



Please use this form to request your quote. Providing your email address will ensure a quick response. We will never share your information without your permission. (Privacy Policy)

Company
Address
Address
City
State/Province
Postal Code
Country
Quote

ATP-I-010-Q-022:

ATP-I-010-Q-350:

ATP-I-010-Q-390:

ATP-I-010-Q-730:

ATP-I-010-Q-120:

ATP-I-010-Q-158:

ATP-I-010-Q-196:

ATP-I-010-Q-219:

ATP-I-010-Q-264:

ATP-I-010-Q-282:

ATP-I-010-Q-406:

ATP-I-010-Q-783:

ATP-I-010-Q-877:

ATP-I-010-Q-1127:


Name
Title
Phone
Fax
Email
Comments







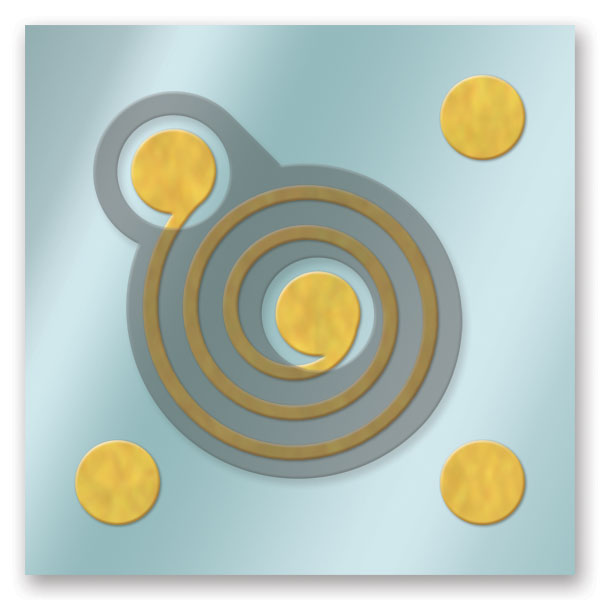

ATP-I-010-Q-022

ATP-I-010-Q-022

Inductor Turns: 2.5

Inductance (L): 2.2nH

Q: 4.5

Part Size: 0.022" x 0.022" (0.559mm x 0.559mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

  ATP-I-010-Q-219

ATP-I-010-Q-219

Inductor Turns: 6.5

Inductance (L): 21.9nH

Q: 9.6

Part Size: 0.034" x 0.034" (0.864mm x 0.864mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

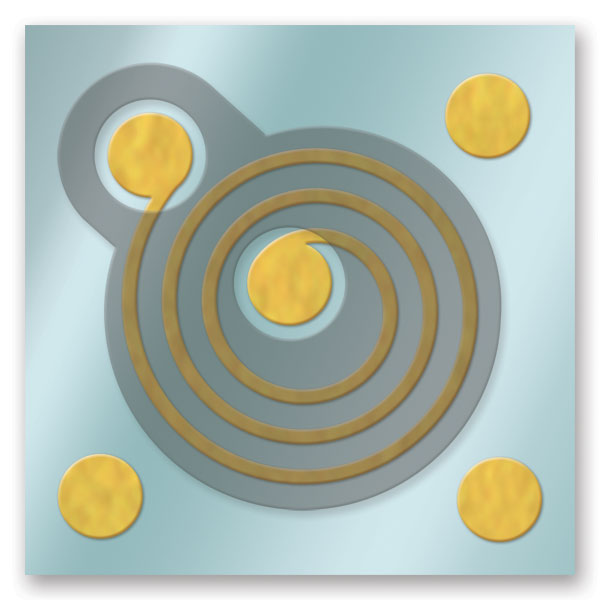

ATP-I-010-Q-350

ATP-I-010-Q-350

Inductor Turns: 3.0

Inductance (L): 3.5nH

Q: 4.5

Part Size: 0.022" x 0.022" (0.559mm x 0.559mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

  ATP-I-010-Q-264

ATP-I-010-Q-264

Inductor Turns: 7.0

Inductance (L): 26.4nH

Q: 9.4

Part Size: 0.032" x 0.032" (0.813mm x 0.813mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

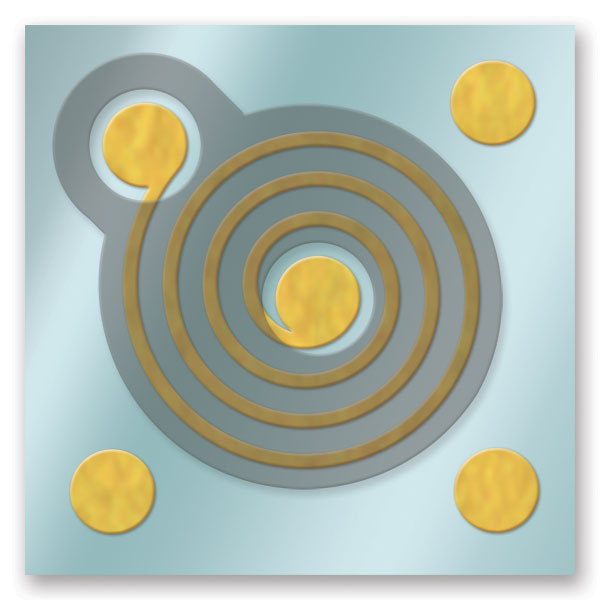

ATP-I-010-Q-390

ATP-I-010-Q-390

Inductor Turns: 3.5

Inductance (L): 3.9nH

Q: 5.2

Part Size: 0.022" x 0.022" (0.559mm x 0.559mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

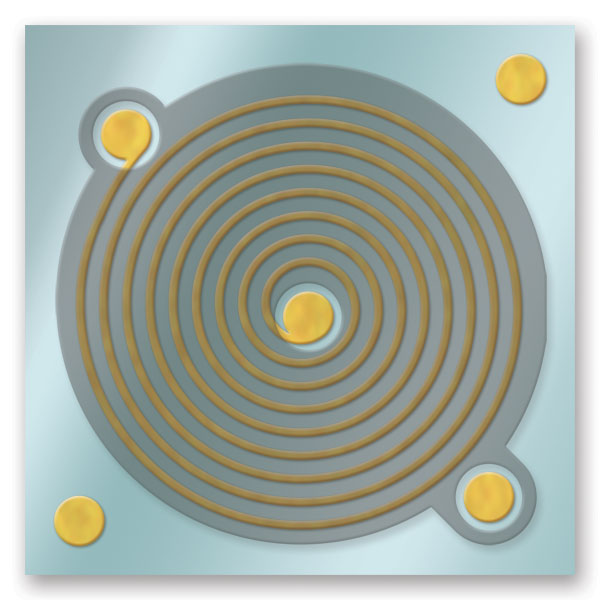

  ATP-I-010-Q-282

ATP-I-010-Q-282

Inductor Turns: 7.5

Inductance (L): 28.2nH

Q: 8.9

Part Size: 0.032" x 0.032" (0.813mm x 0.813mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

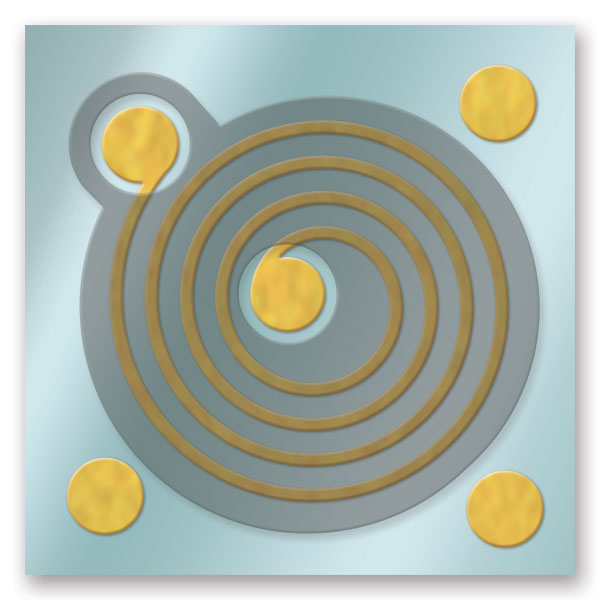

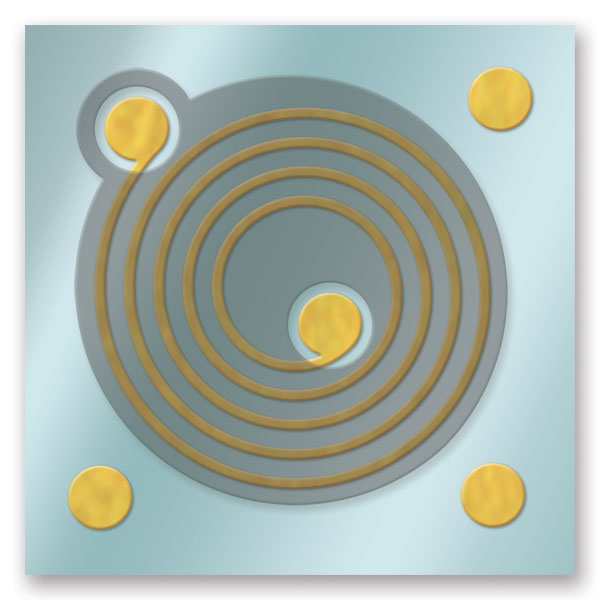

ATP-I-010-Q-730

ATP-I-010-Q-730

Inductor Turns: 4.0

Inductance (L): 7.3nH

Q: 5.9

Part Size: 0.025" x 0.025" (0.635mm x 0.635mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

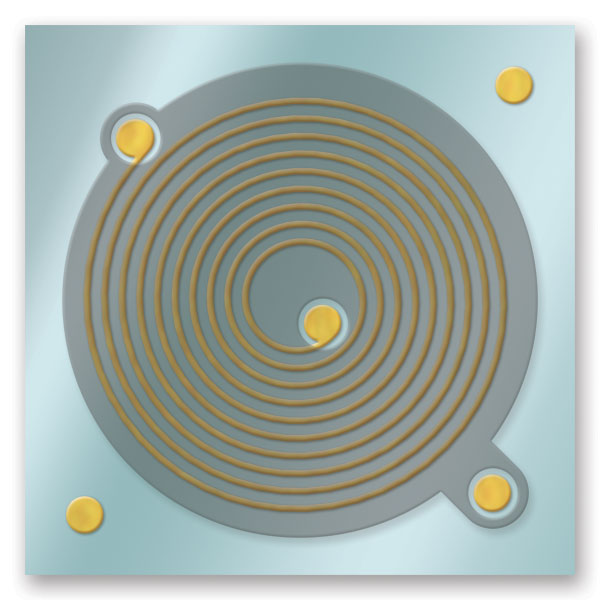

  ATP-I-010-Q-406

ATP-I-010-Q-406

Inductor Turns: 8.25

Inductance (L): 40.6nH

Q: 10.9

Part Size: 0.038" x 0.038" (0.965mm x 0.965mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

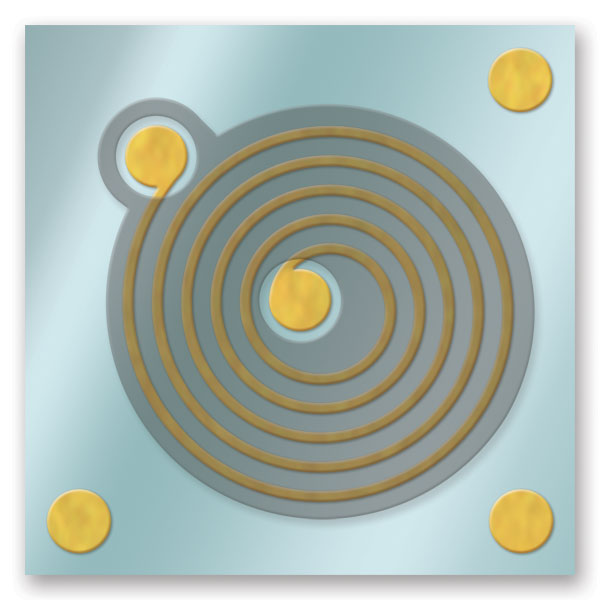

ATP-I-010-Q-120

ATP-I-010-Q-120

Inductor Turns: 4.5

Inductance (L): 12.0nH

Q: 7.3

Part Size: 0.030" x 0.030" (0.762mm x 0.762mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

  ATP-I-010-Q-783

ATP-I-010-Q-783

Inductor Turns: 9.5

Inductance (L): 78.3nH

Q: 18.1

Part Size: 0.050" x 0.050" (1.270mm x 1.270mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

ATP-I-010-Q-158

ATP-I-010-Q-158

Inductor Turns: 5.0

Inductance (L): 15.8nH

Q: 8.1

Part Size: 0.030" x 0.030" (0.762mm x 0.762mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

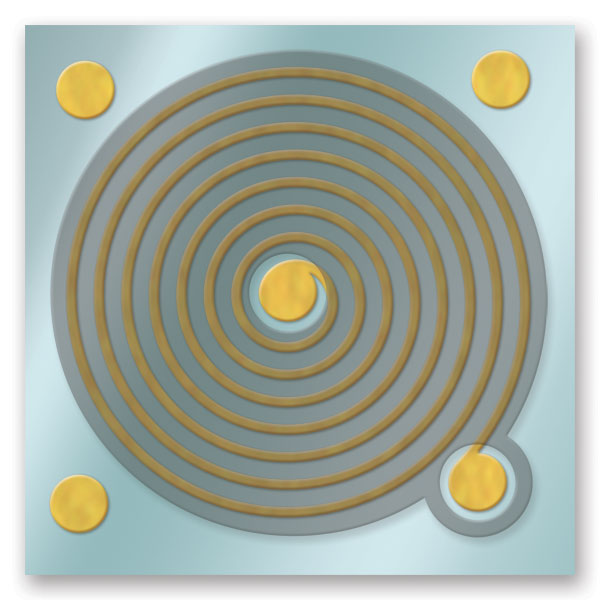

  ATP-I-010-Q-877

ATP-I-010-Q-877

Inductor Turns: 10.5

Inductance (L): 87.7nH

Q: 14.7

Part Size: 0.046" x 0.046" (1.168mm x 1.168mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

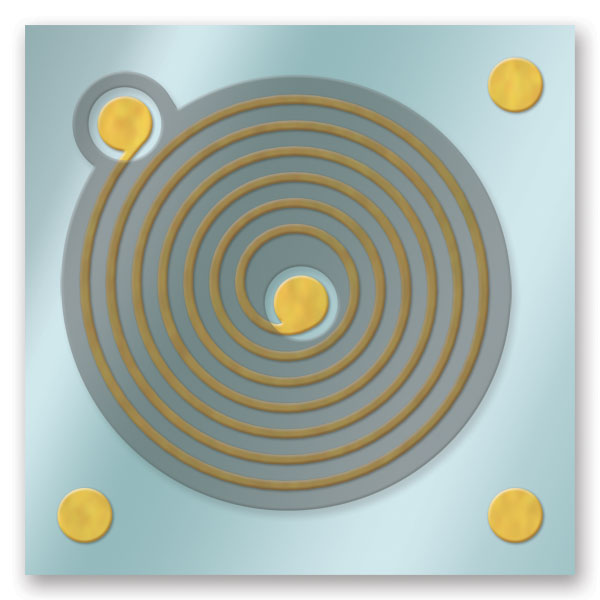

ATP-I-010-Q-196

ATP-I-010-Q-196

Inductor Turns: 5.5

Inductance (L): 19.6nH

Q: 8.6

Part Size: 0.032" x 0.032" (0.813mm x 0.813mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:

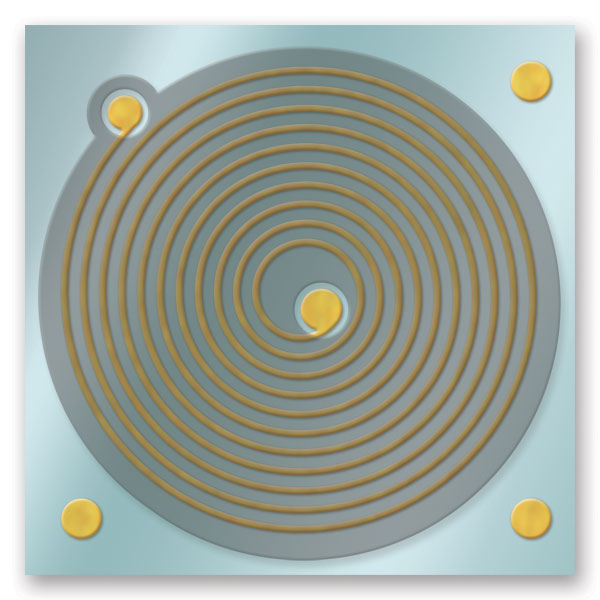

  ATP-I-010-Q-1127

ATP-I-010-Q-1127

Inductor Turns: 12.0

Inductance (L): 112.7nH

Q: 16.9

Part Size: 0.052" x 0.052" (1.321mm x 1.321mm)

Download Data Sheet in PDF format.*

Request For Quote Quantity:



*PDF documents require Adobe Reader.

ATP Part# Inductor Turns Inductance (L) Q Part Size Data Sheet
ATP-I-010-Q-022 2.5 2.2nH 4.5 0.022" x 0.022" (0.559mm x 0.559mm) PDF*
ATP-I-010-Q-350 3.0 3.5nH 4.5 0.022" x 0.022" (0.559mm x 0.559mm) PDF*
ATP-I-010-Q-390 3.5 3.9nH 5.2 0.022" x 0.022" (0.559mm x 0.559mm) PDF*
ATP-I-010-Q-730 4.0 7.3nH 5.9 0.025" x 0.025" (0.635mm x 0.635mm) PDF*
ATP-I-010-Q-120 4.5 12.0nH 7.0 0.030" x 0.030" (0.762mm x 0.762mm) PDF*
ATP-I-010-Q-158 5.0 15.8nH 8.1 0.030" x 0.030" (0.762mm x 0.762mm) PDF*
ATP-I-010-Q-196 5.5 19.6nH 8.6 0.032" x 0.032" (0.813mm x 0.813mm) PDF*
ATP-I-010-Q-219 6.5 21.9nH 9.6 0.034" x 0.034" (0.864mm x 0.864mm) PDF*
ATP-I-010-Q-264 7.0 26.4nH 9.4 0.032" x 0.032" (0.813mm x 0.813mm) PDF*
ATP-I-010-Q-282 7.5 28.2nH 8.9 0.032" x 0.032" (0.813mm x 0.813mm) PDF*
ATP-I-010-Q-406 8.25 40.6nH 10.9 0.038" x 0.038" (0.965mm x 0.965mm) PDF*
ATP-I-010-Q-783 9.5 78.3nH 18.1 0.050" x 0.050" (1.270mm x 1.270mm) PDF*
ATP-I-010-Q-877 10.5 87.7nH 14.7 0.046" x 0.046" (1.168mm x 1.168mm) PDF*
ATP-I-010-Q-1127 12.0 112.7nH 16.9 0.052" x 0.052" (1.321mm x 1.321mm) PDF*
