Standard Dimensions and Tolerances

Au: Minimum Line-Width

Typical 0.0004" (10.16µm) for Au thickness <200µ".

Smaller dimensions may be available. Please contact our Sales Department for details.

Au: Minimum Gap

Typical 0.0004" (10.16µm) for Au thickness <200µ".

Applies to plate-up processes only. Contact our Sales Department for minimum gap for etch back processes.

Cu: Minimum Line-Width

Typical 0.0004" (10.16µm) for

thicknesses <200µ".

For thicknesses >200µ" please contact our Sales Department for details.

Cu: Minimum Gap

Typical 0.0004" (10.16µm) for thicknesses <200µ".

For thicknesses >200µ" please contact our Sales Department for details.

Cu or Au: Maximum Thickness

Maximum 0.001" (25.4µm)

Please contact our Sales Department for details.

Resistor Minimum Length and Width

Typical 0.002" (50.08µm) non-trimable.

Smaller dimensions may be available but will require a relaxed tolerance. Please contact our Sales Department for details.

Au: Dimensional Tolerance on Critical Areas

Typical ±0.0002" (5.08µm)

Critical: ±0.0001" (2.54µm)

Select: ±0.00005" (1.27µm)

Dimensional tolerance on non-critical areas: Typical ±0.0002" (5.08µm)

Cu or Au: Dimensional Tolerance on Critical Areas Where Cu is Thicker Than 0.0005" (500µ") or (12.7µm)

Typical ±0.0003" (7.62µm)

Select ±0.0002" (5.08µm)

Dimensional tolerance on non-critical areas: Typical ±0.0004" (10.16µm)

Circuit Dimensional Tolerance—Diamond Sawn

Typical ±0.002" (50.8µm)

Select: ±0.0005" (12.7µm)





Resistor Tolerance (With Laser Trim)

Typical: ±2%

Select: ±0.5%

Select is dependent on size of resistor.

Via to Pattern Registration

Typical: ±0.002" (50.8µm)

Select: ±0.0005" (12.7µm)

Please contact our Sales Department for details.

Via Hole Diameter Aspect Ratio:

Typical: > 0.85

Select: > 0.50

Aspect ratio is defined as: Dv / Ts where:

Dv = Diameter of the via (thru hole)

Ts = Thickness of the substrate

Via Hole Taper

Typical: 10%

Select: ±0.001" (25.4µm)

Via Hole Diameter Tolerance

Typical: ±0.002" (50.8µm)

Select: ±0.001" (25.4µm)

Via Hole Location Tolerance

Typical: ±0.002" (50.8µm)

Select: ±0.001" (25.4µm)

Via Hole Spacing

One diameter minimum distance

Via Hole Proximity to Edge of Circuit

One diameter minimum distance away from edge

Laser Machined Features

Typical: ±0.002" (50.8µm)

Select: ±0.001" (25.4µm)

Backside Metal Pullback

Typical Tolerance: ±0.001" (25.4µm)

Front to Back Image Registration

Typical: ±0.001" (25.4µm)

Select: ±0.0005" (12.7µm)

Laser Machined Features Next to Au/Sn

Min distance: 0.005" (127µm) for Al203

Min distance: 0.010" (254µm) for AlN

Min distance: 0.010" (254µm) for BeO

Laser Machined Radius

Typical: 0.006" (15.2µm)

Select: 0.003" (76.2µm)



Design Guideline Dimensions and Tolerances

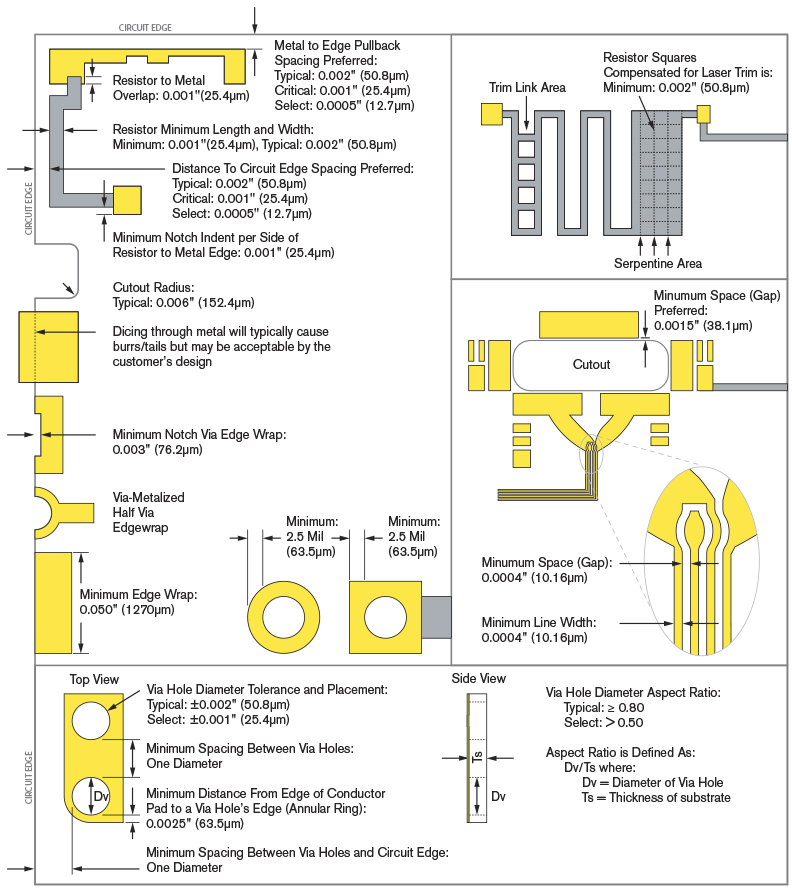

ATP Design Guideline Dimensions and Tolerances Illustration

Download the “ATP Design Guideline Dimensions and Tolerances Illustration” in PDF format.*

For more information on dimension and tolerances, please request document #DG50020 Design For Manufacturability, in PDF format.*

Please use this form to request document #DG50020 Design For Manufacturability, in PDF format. Providing your email address will ensure a quick response. We will never share your information without your permission. (Privacy Policy)

Company
Address
Address
City
State/Province
Postal Code
Country

Name
Title
Phone
Fax
Email
Comments


*PDF documents require Adobe Reader.


Disclaimers

Note: Dicing through metals will typically cause burrs/tails and on polished materials could affect adhesion. Another solution ATP recommends to prevent these type of issues is by putting a pullback typical .001" (0.0254mm) in the design of the circuit. Inquire with ATP Sales for more information.

Note: Diamond sawing (dicing), scribing, or breaking of cut thru edge vias or castellations may cause undercutting or separation induced anomalies. If it is required by design, then ATP will refer and adhere to MIL-STD-883J Section 3.1.1.3.



Note: For long term storage, ATP recommends storing thin-film circuits ideally at room temperature in a nitrogen purged dessicator (or equivalent) and using a pre-clean method that is compatible with thin-film circuits prior to assembly.

Note: ATP is a fabricator of custom thin-film circuits and does not claim to be an electrical design consultant. ATP does not guarantee electrical performance of any customer supplied custom designs.



Note: All thin-film circuits shipped from ATP are free of debris and FOD when packaged. However, alumina and other hard substrate materials have very sharp corners and edges that can act like knife edges and may create debris and FOD from the packaging materials used during the shipping process. Some large and unusually shaped circuits may require a special foam insert to ensure breakage does not happen during shipping. ATP makes every effort to ship clean and QC approved thin-film circuits but it is for these reasons ATP recommends using a pre-clean method that is compatible with thin-film circuits prior to assembly.
