ATP Bond Qualification Coupons

This is a unique, cost-effective tool offered by ATP to aid our customers in the daily bond pull qualification required by mil-883 hybrid assemblies. The coupon gives you a platform that allows you to organize and track your bond pulls on a daily and monthly basis. The coupon is designed as a calendar to maintain daily through monthly test results of each bonder on your assembly line. Each pad maintains the bond pulls done on a daily basis and allows you to add each day a new set of bonds throughout the month. The coupon allows you the ability to mark or scribe specific information on it such as the month samples are from and which bonder they were performed on. This is a great tool to organize and retain bond pull information throughout the year and, along with your daily logs, it puts audit and recall data at your fingertips in an organized fashion.

Download Bond Coupon Data Sheet in PDF format.*

Download Alternative Bond Coupon Data Sheet in PDF format.*

*PDF documents require Adobe Reader.

  Bond Coupon

Bond Coupon

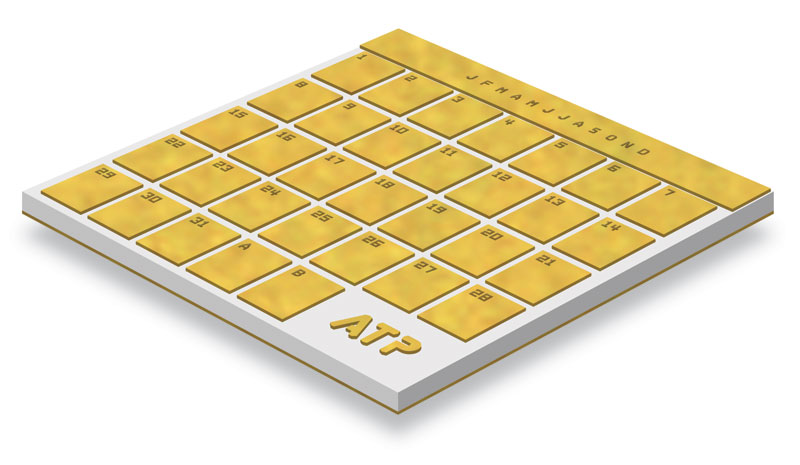

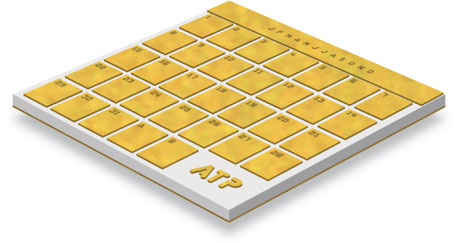

Actual size is 0.256" x 0.256" (6.5mm x 6.5mm)

Alternative Bond Coupon

Alternative Bond Coupon

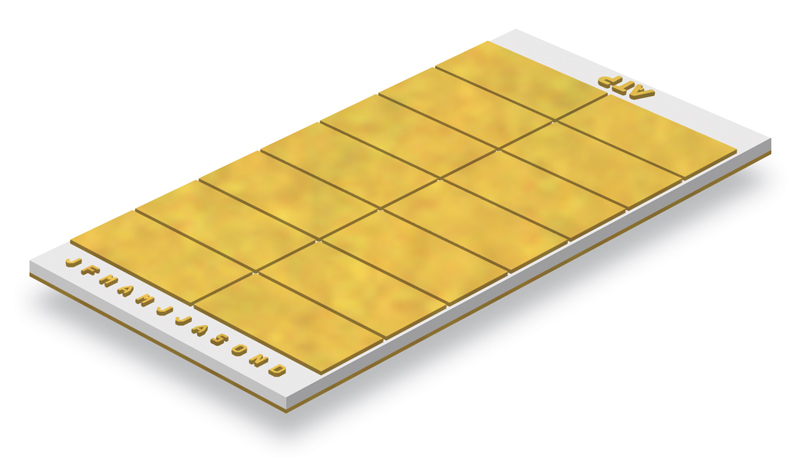

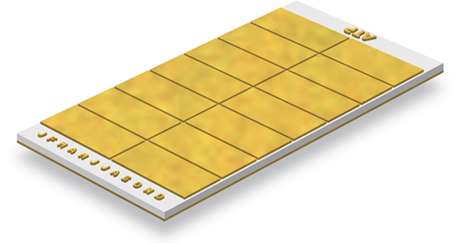

Actual size is 1.000" x 0.500" (25.4mm x 12.7mm)

Available in Alumina, Aluminum Nitrite, Quartz and BeO.




ATP can ship you a limited amount of Bond Coupon samples for your review. Select the Request Samples button, at right.

For Alternative Bond Coupon samples, please contact ATP Sales.
