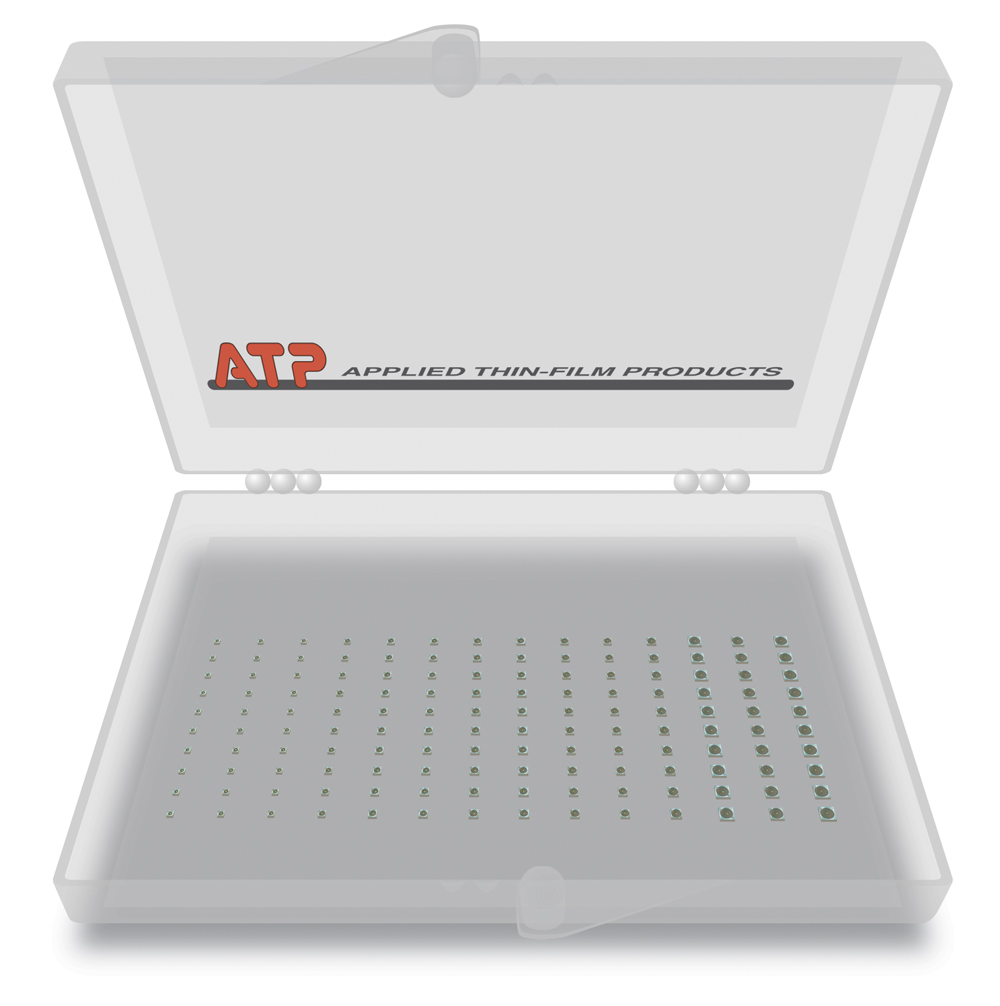

Inductor Coils Engineering Kit

ATP offers Inductor Coils Engineering Kits which contain the entire ATP Inductor Coils product line in one complete package to meet your prototyping needs.

Material: 0.010 Thick quartz/fused Silica (SiO2)
Metalization A Side:
• TiW = 400 to 800 Å
• Au = 250µ" minimum
No Metalization on B Side
Critical Dimensions:
• Line = 0.0006 ±0.0001
• Gap = 0.001 ±0.0001
Polyimide = 3–6 Microns

Contact ATP Sales for special pricing and quick turns on the following Kit part number:
ATP-I-010-Q-ENGKIT

Download Data Sheet in PDF format.*

Inductor Coil

Select the Request For Quote button, below, to request a quote for your Engineering Transmission Lines Kit(s).

Please use this form to request your quote. Providing your email address will ensure a quick response. We will never share your information without your permission. (Privacy Policy)

* Company
* Address
Address
* City
* State/Province
Postal Code
* Country
* Industry
Quantity of Kits

* Name
* Title
* Phone
Fax
* Email
Comments

* Required fields.

Each kit contains the following part numbers and quantities:

ATP Part#	Inductor Turns	Inductance (L)	Q	Part Size	Quantity
ATP-I-010-Q-022	2.5	2.2nH	4.5	0.022" x 0.022" (0.559mm x 0.559mm)	10
ATP-I-010-Q-350	3.0	3.5nH	4.5	0.022" x 0.022" (0.559mm x 0.559mm)	10
ATP-I-010-Q-390	3.5	3.9nH	5.2	0.022" x 0.022" (0.559mm x 0.559mm)	10
ATP-I-010-Q-730	4.0	7.3nH	5.9	0.025" x 0.025" (0.635mm x 0.635mm)	10
ATP-I-010-Q-120	4.5	12.0nH	7.0	0.030" x 0.030" (0.762mm x 0.762mm)	10
ATP-I-010-Q-158	5.0	15.8nH	8.1	0.030" x 0.030" (0.762mm x 0.762mm)	10
ATP-I-010-Q-196	5.5	19.6nH	8.6	0.032" x 0.032" (0.813mm x 0.813mm)	10
ATP-I-010-Q-219	6.5	21.9nH	9.6	0.034" x 0.034" (0.864mm x 0.864mm)	10
ATP-I-010-Q-264	7.0	26.4nH	9.4	0.032" x 0.032" (0.813mm x 0.813mm)	10
ATP-I-010-Q-282	7.5	28.2nH	8.9	0.032" x 0.032" (0.813mm x 0.813mm)	10
ATP-I-010-Q-406	8.25	40.6nH	10.9	0.038" x 0.038" (0.965mm x 0.965mm)	10
ATP-I-010-Q-783	9.5	78.3nH	18.1	0.050" x 0.050" (1.270mm x 1.270mm)	10
ATP-I-010-Q-877	10.5	87.7nH	14.7	0.046" x 0.046" (1.168mm x 1.168mm)	10
ATP-I-010-Q-1127	12.0	112.7nH	16.9	0.052" x 0.052" (1.321mm x 1.321mm)	10

ATP will guarantee to MIL-STD-883, Method 2011.10, Test Condition D, using a 1mil wire, on ATP standard products.

ATP offers build-to-print service for a wide range of materials and metalization schemes. ATP fabricates circuits on substrates from As-Fired Alumina to Beryllium Oxide to Fused Silica, even Silicon. Metalizations range from the standard TaN/TiW/Au to films including Nickel, Palladium, or Titanium.

At ATP, we constantly evolve our processing and material capabilities to reflect our customer’s changing needs. If you have a circuit requirement that is out of the “normal” thin-film type, please contact ATP Sales. ATP would enjoy discussing your application with you and working to develop a solution.
