Edge Wraps

Edge metallization can be added as an alternative to via or slotted wraps. This process can be photo defined if needed.

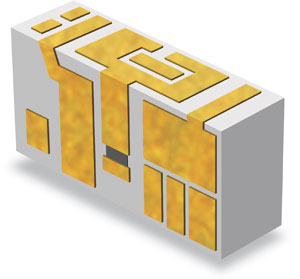

Edge Defined Wraps



ATP offers alternative, cost-effective Indented Edge Wraps versus Edge Defined Wraps. Check with the sales department for additional details.

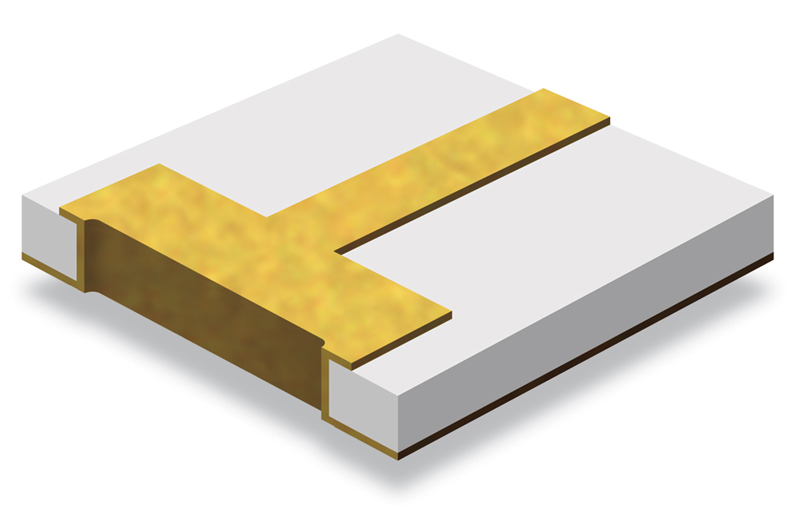

Indented Edge Wraps

Indented Edge Wraps

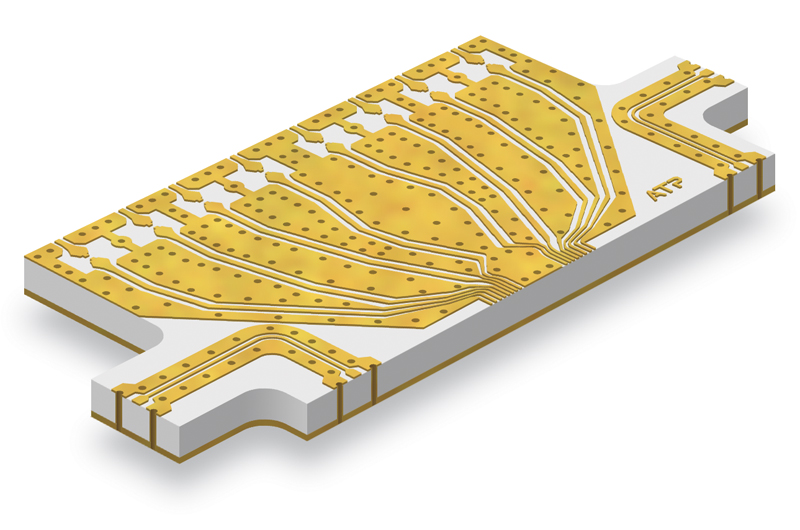

Co-Planer Wave Guide

Co-Planer Wave Guide

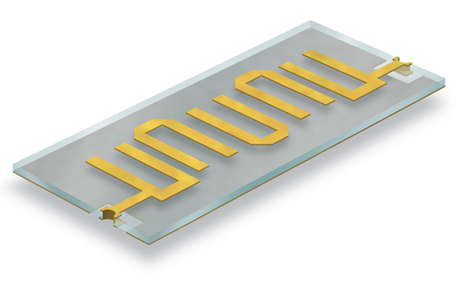

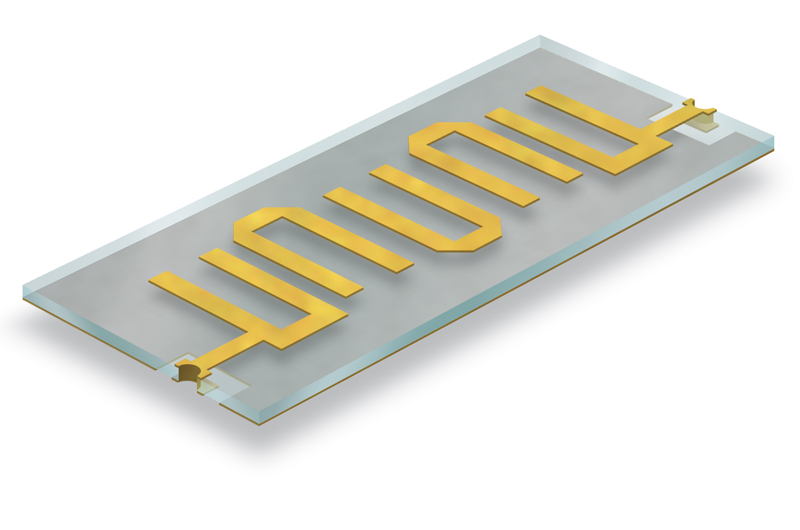

  Edge Wrap for Surface Mount Technology

Edge Wrap for Surface Mount Technology
