Stand Off/Isolation Pads

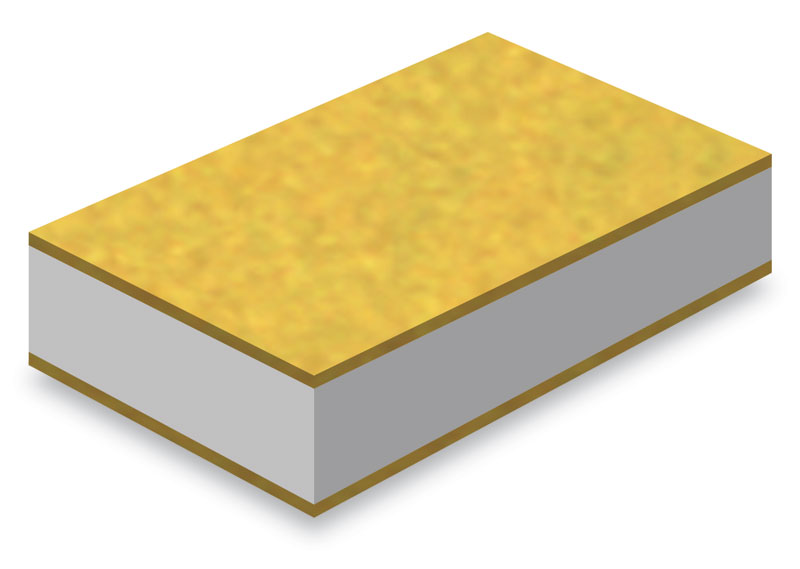

ATP offers a wide variety of Stand Off/Isolation Pads to aid our customers in their hybrid assembly processing. Stand Offs and Isolation Pads can be used in a variety of ways depending on the metal scheme ordered. They can be used as a capacitive standoff, component mounting isolation pad, landing pads to reduce bond wire and DC bias wire lengths, gap pedestals for aligning component heights and many other useful configurations.

Note: ATP’s Stand-Off/Isolation Pads are off the shelf quick turn parts inspected to our commercial grade inspection criteria (WSS71-02). If a tighter inspection criteria is required then please let ATP Sales know at the time of quoting.

Note: On occasion these parts may exhibit burrs by design and no burrs is required, then please contact ATP Sales for a custom solution.

Material: Asfired Alumina 99.6% and Aluminum Nitride is available.

Metallization front and back sides:

TiW = 300–800Å (0.03µm–0.08µm)

Au = 120µ" (3 microns) minimum

Delivery: 24–48 hours (in-stock lengths only)

ATP will guarantee to MIL-STD-883, Method 2011.10, Test Condition D, using a 1mil wire, on ATP standard products.

Request a quote for the ATP Stand Off/Isolation Pads. Indicate the quantities below, then submit your RFQ with the Request For Quote button, below.

Please use this form to request your quote. Providing your email address will ensure a quick response. We will never share your information without your permission. (Privacy Policy)

* Company
* Address
Address
* City
* State/Province
Postal Code
* Country
* Industry
Quote	ATPS-F-005-010-010: ATPS-F-005-015-015: ATPS-F-005-020-020: ATPS-F-005-025-025: ATPS-F-010-010-010: ATPS-F-010-015-015: ATPS-F-010-020-020: ATPS-F-010-025-025: ATPS-F-015-010-010: ATPS-F-015-015-015: ATPS-F-015-020-020: ATPS-F-015-025-025: ATPS-F-020-010-010: ATPS-F-020-015-015: ATPS-F-020-020-020: ATPS-F-020-025-025: ATPS-F-025-010-010: ATPS-F-025-015-015: ATPS-F-025-020-020: ATPS-F-025-025-025:

* Name
* Title
* Phone
Fax
* Email
Comments

* Required fields.

ATP Standoffs Parts List

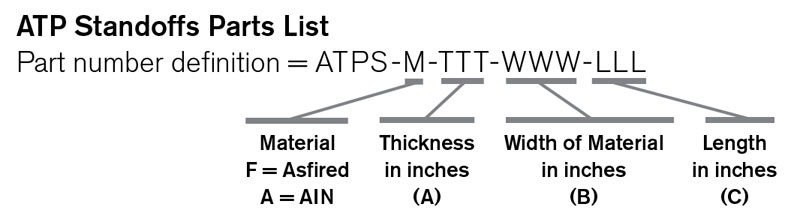

Part number definition =

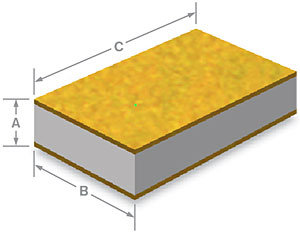

ATP Part Number	Thickness (A)	Width (B)	Length (C)	RFQ Quantity
ATPS-F-005-010-010	0.005"(0.127mm)	0.010"(0.254mm)	0.010"(0.254mm)
ATPS-F-005-015-015	0.005"(0.127mm)	0.015"(0.381mm)	0.015"(0.381mm)
ATPS-F-005-020-020	0.005"(0.127mm)	0.020"(0.508mm)	0.020"(0.508mm)
ATPS-F-005-025-025	0.005"(0.127mm)	0.025"(0.635mm)	0.025"(0.635mm)
ATPS-F-010-010-010	0.010"(0.254mm)	0.010"(0.254mm)	0.010"(0.254mm)
ATPS-F-010-015-015	0.010"(0.254mm)	0.015"(0.381mm)	0.015"(0.381mm)
ATPS-F-010-020-020	0.010"(0.254mm)	0.020"(0.508mm)	0.020"(0.508mm)
ATPS-F-010-025-025	0.010"(0.254mm)	0.025"(0.635mm)	0.025"(0.635mm)
ATPS-F-015-010-010	0.015"(0.381mm)	0.010"(0.254mm)	0.010"(0.254mm)
ATPS-F-015-015-015	0.015"(0.381mm)	0.015"(0.381mm)	0.015"(0.381mm)
ATPS-F-015-020-020	0.015"(0.381mm)	0.020"(0.508mm)	0.020"(0.508mm)
ATPS-F-015-025-025	0.015"(0.381mm)	0.025"(0.635mm)	0.025"(0.635mm)
ATPS-F-020-010-010	0.020"(0.508mm)	0.010"(0.254mm)	0.010"(0.254mm)
ATPS-F-020-015-015	0.020"(0.508mm)	0.015"(0.381mm)	0.015"(0.381mm)
ATPS-F-020-020-020	0.020"(0.508mm)	0.020"(0.508mm)	0.020"(0.508mm)
ATPS-F-020-025-025	0.020"(0.508mm)	0.025"(0.635mm)	0.025"(0.635mm)
ATPS-F-025-010-010	0.025"(0.635mm)	0.010"(0.254mm)	0.010"(0.254mm)
ATPS-F-025-015-015	0.025"(0.635mm)	0.015"(0.381mm)	0.015"(0.381mm)
ATPS-F-025-020-020	0.025"(0.635mm)	0.020"(0.508mm)	0.020"(0.508mm)
ATPS-F-025-025-025	0.025"(0.635mm)	0.025"(0.635mm)	0.025"(0.635mm)
