Microstrip Transmission Lines Engineering Kits

Applied Thin-Film Products (ATP) is pleased to offer new Microstrip Transmission Lines Engineering Kits to help your bread-boarding needs with a cost effective solution.

Material is As-Fired Al2O3
Metalization A & B Side:
TiW = 00 to 800 Angstroms
Au = 120 µ" minimum



Inquire with ATP Sales for special pricing and quick turns on the following Kit part numbers:
ATP-F-005-050-ENGKIT
ATP-F-010-050-ENGKIT
ATP-F-015-050-ENGKIT
ATP-F-020-060-ENGKIT
ATP-F-025-060-ENGKIT
ATP-WP2-F-010-030-ENGKIT
ATP-WP4-F-015-030-ENGKIT
ATP-WP4-F-025-050-ENGKIT

Select the Request Quote button, below, to request a quote for your Engineering Transmission Lines Kit(s).

Please use this form to request your quote. Providing your email address will ensure a quick response. We will never share your information without your permission. (Privacy Policy)

Company
Address
Address
City
State/Province
Postal Code
Country
Quote

ATP-F-005-050-ENGKIT:

ATP-F-010-050-ENGKIT:

ATP-F-015-050-ENGKIT:

ATP-F-020-060-ENGKIT:

ATP-F-025-060-ENGKIT:

ATP-WP2-F-010-030-ENGKIT:

ATP-WP4-F-015-030-ENGKIT:

ATP-WP4-F-025-050-ENGKIT:


Name
Title
Phone
Fax
Email
Comments

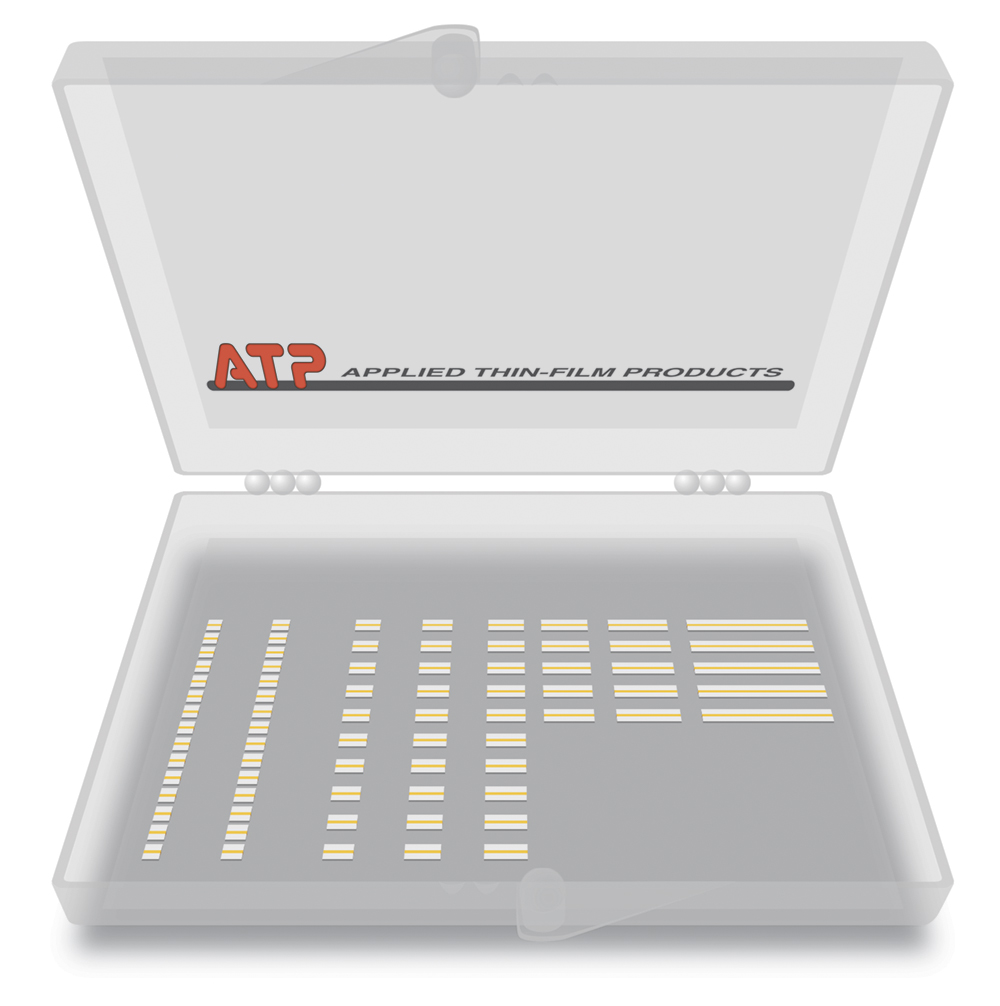

  Microstrip Transmission Lines Engineering Kit

Engineering Kits for
Single Transmission Lines

These Engineering Kits are readily available on 0.005" (0.127mm), 0.010" (0.254mm), 0.015" (0.381mm), 0.020" (0.508mm), 0.25" (0.635mm) thick As-Fired Alumina.

Each Engineering Kit contains a variety of single transmission lines in lenghts of 0.050" (1.270mm), 0.075" (1.905mm), 0.100" (2.540mm), 0.125" (3.175mm), 0.150" (3.810mm), 0.200" (5.080mm), 0.250" (6.350mm),0 .500" (12.700mm).

Circuit widths are fixed at 0.050" (1.270mm) and 0.060" (1.524mm), depending on material thickness.

Download Data Sheet in PDF format.*


Engineering Kit Part Number Substrate Thickness RFQ Quantity
ATP-F-005-050-ENGKIT 0.005" (0.127mm)
ATP-F-010-050-ENGKIT 0.010" (0.254mm)
ATP-F-015-050-ENGKIT 0.015" (0.381mm)
ATP-F-020-060-ENGKIT 0.020" (0.508mm)
ATP-F-025-060-ENGKIT 0.25" (0.635mm)

Each kit above includes the following Microstrip Transmission Lines parts, each in the substrate thickness specified:

P/N List: (inches) P/N List: (mm) Quantity
ATP-F-XXX-050-050 ATP-F-XXX-1.270-1.270 15
ATP-F-XXX-050-075 ATP-F-XXX-1.270-1.905 15
ATP-F-XXX-050-100 ATP-F-XXX-1.270-2.540 10
ATP-F-XXX-050-125 ATP-F-XXX-1.270-3.175 10
ATP-F-XXX-050-150 ATP-F-XXX-1.270-3.810 10
ATP-F-XXX-050-200 ATP-F-XXX-1.270-5.080 5
ATP-F-XXX-050-250 ATP-F-XXX-1.270-6.350 5
ATP-F-XXX-050-500 ATP-F-XXX-1.270-12.700 5

* 50 ohm impedence and data available upon request.
Please inquire with ATP Sales.

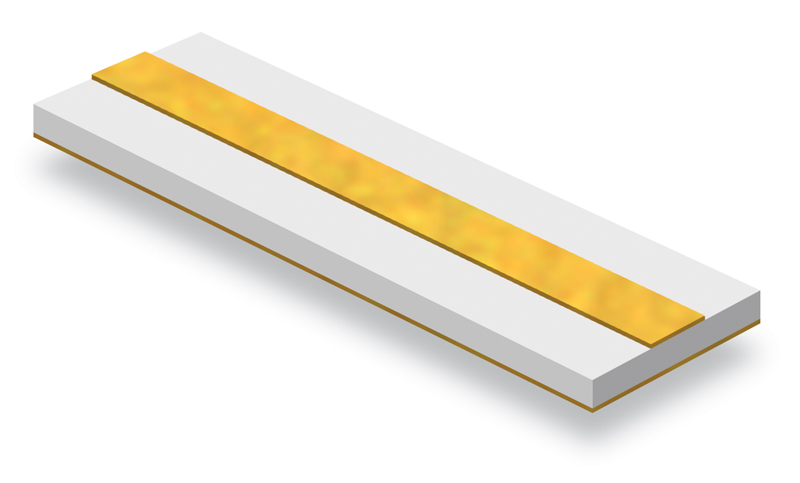

  Single Transmission Line

Single Line


Engineering Kits for
Single Transmission Lines with
Two Rows of Tuning Pads

These Engineering Kits are readily available on 0.010" (0.254mm) thick As-Fired Alumina.

Each Engineering Kit contains a variety transmission lines with 2 rows of tuning pads in lenghts of 0.050" (1.270mm), 0.075" (1.905mm), 0.100" (2.540mm), 0.125" (3.175mm), 0.150" (3.810mm), 0.200" (5.080mm), 0.250" (6.350mm), 0.500" (12.700mm).

Circuit widths are fixed at 0.030" (0.762mm).

Download Data Sheet in PDF format.*


Engineering Kit Part Number Substrate Thickness RFQ Quantity
ATP-WP2-F-010-030-ENGKIT 0.010" (0.254mm)

Each kit above includes the following Microstrip Transmission Lines parts, each in the substrate thickness specified:

P/N List: (inches) P/N List: (mm) Quantity
ATP-WP2-F-010-030-050 ATP-WP2-F-0.254-0.762-1.270 15
ATP-WP2-F-010-030-075 ATP-WP2-F-0.254-0.762-1.905 15
ATP-WP2-F-010-030-100 ATP-WP2-F-0.254-0.762-2.540 10
ATP-WP2-F-010-030-125 ATP-WP2-F-0.254-0.762-3.175 10
ATP-WP2-F-010-030-150 ATP-WP2-F-0.254-0.762-3.810 10
ATP-WP2-F-010-030-200 ATP-WP2-F-0.254-0.762-5.080 5
ATP-WP2-F-010-030-250 ATP-WP2-F-0.254-0.762-6.350 5
ATP-WP2-F-010-030-500 ATP-WP2-F-0.254-0.762-12.700 5

* 50 Ohm impedence and data available upon request.
Please inquire with ATP Sales.

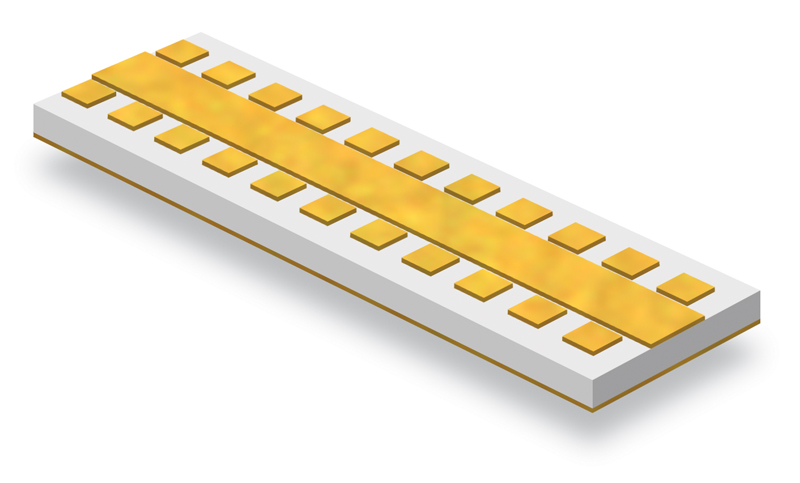

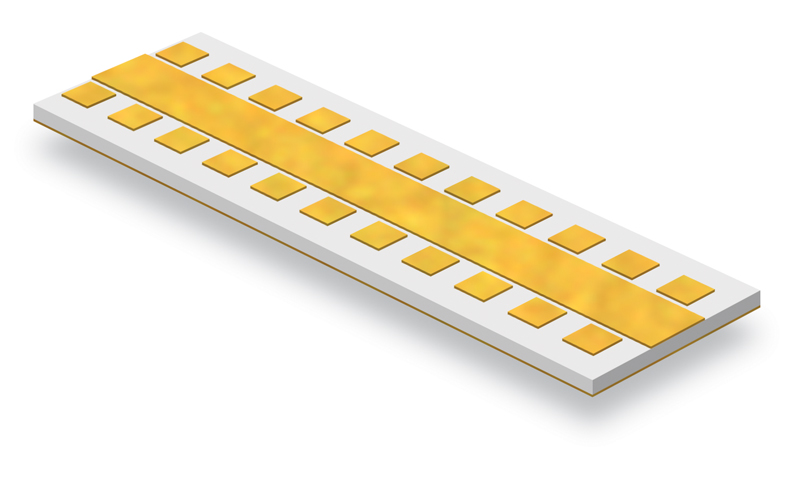

  Single Transmission Line with Two Rows of Tuning Pads

Single Line with
Two Rows
of Tuning Pads


Engineering Kits for
Single Transmission Lines with
Four Rows of Tuning Pads

These Engineering Kits are readily available on 0.015" (0.381mm) and 0.025" (0.635mm) thick As-Fired Alumina.

Each Engineering Kit contains a variety transmission lines with 4 rows of tuning pads in lenghts of 0.050" (1.270mm), 0.075" (1.905mm), 0.100" (2.540mm), 0.125" (3.175mm), 0.150" (3.810mm), 0.200" (5.080mm), 0.250" (6.350mm), 0.500" (12.700mm).

Circuit widths are fixed at 0.050" (0.1.270mm).

Download Data Sheet in PDF format.*


Engineering Kit Part Number Substrate Thickness RFQ Quantity
ATP-WP4-F-015-030-ENGKIT 0.015" (0.381mm)
ATP-WP4-F-025-050-ENGKIT 0.25" (0.635mm)

Each kit above includes the following Microstrip Transmission Lines parts, each in the substrate thickness specified:

P/N List: (inches) P/N List: (mm) Quantity
ATP-WP4-F-XXX-050-050 ATP-WP4-F-XXXX-1.270-1.270 15
ATP-WP4-F-XXX-050-075 ATP-WP4-F-XXXX-1.270-1.905 15
ATP-WP4-F-XXX-050-100 ATP-WP4-F-XXXX-1.270-2.540 10
ATP-WP4-F-XXX-050-125 ATP-WP4-F-XXXX-1.270-3.175 10
ATP-WP4-F-XXX-050-150 ATP-WP4-F-XXXX-1.270-3.810 10
ATP-WP4-F-XXX-050-200 ATP-WP4-F-XXXX-1.270-5.080 5
ATP-WP4-F-XXX-050-250 ATP-WP4-F-XXXX-1.270-6.350 5
ATP-WP4-F-XXX-050-500 ATP-WP4-F-XXXX-1.270-12.700 5

* 50 Ohm impedence and data available upon request.
Please inquire with ATP Sales.

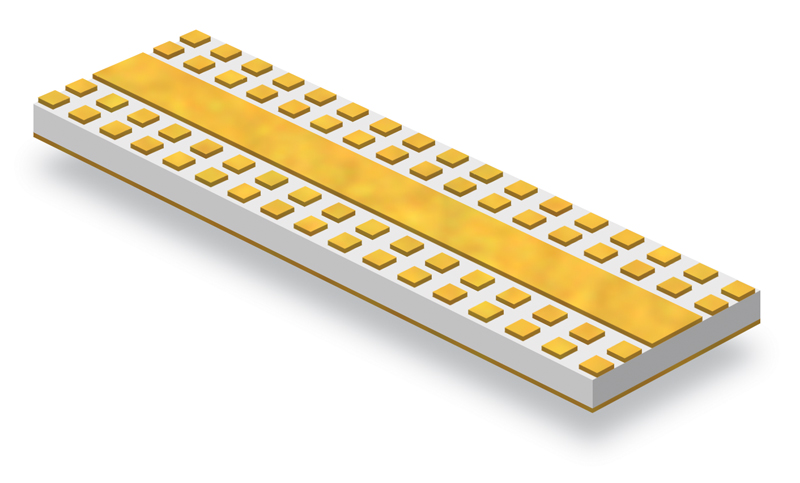

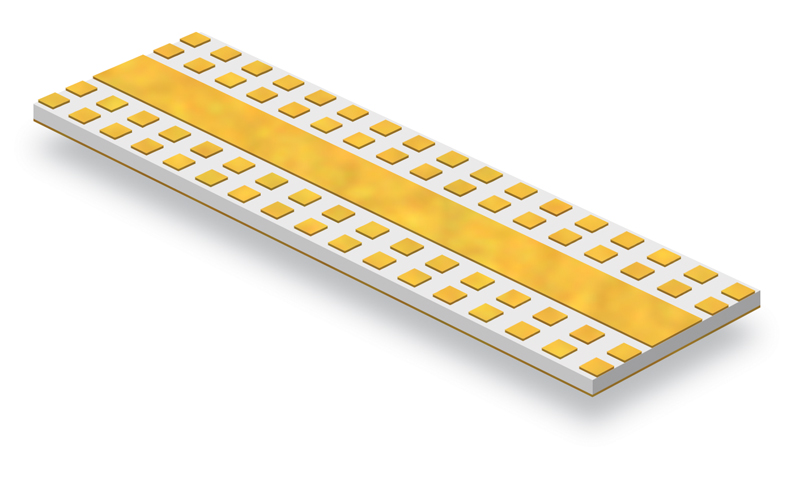

  Single Transmission Line with Four Rows of Tuning Pads

Single Line with
Four Rows
of Tuning Pads


Note: By design, these parts may occasionally have burrs/tails since ATP is dicing through Au. There is no pullback in these designs.

ATP offers build-to-print service for a wide range of materials and metalization schemes. ATP fabricates circuits on substrates from As-Fired Alumina to Beryllium Oxide to Fused Silica, even Silicon. Metalizations range from the standard TaN/TiW/Au to films including Nickel, Palladium, or Titanium.

At ATP, we constantly evolve our processing and material capabilities to reflect our customers’ changing needs. If you have a circuit requirement that is out of the “normal” thin-film type, please contact us. ATP would enjoy discussing your application with you and working to develop a solution.
