Microstrip Transmission Lines

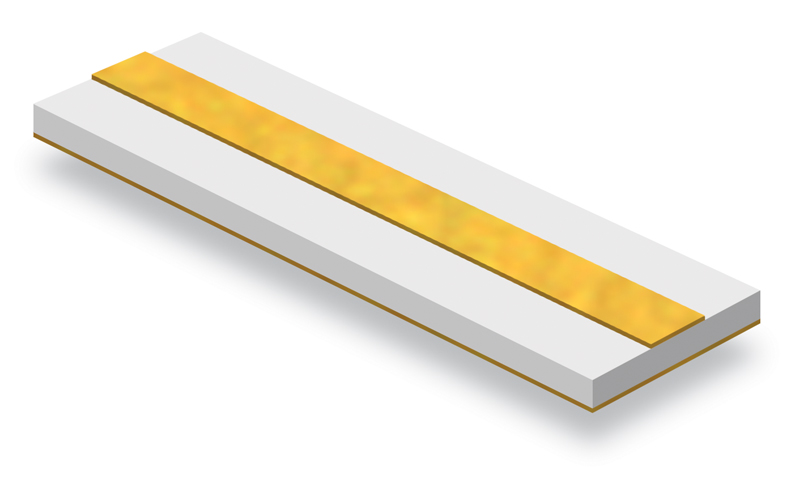

ATP offers three different types of 50 Ohm transmission lines: single line, single line with two rows of tuning pads, and single line with four rows of tuning pads. ATP Transmission Lines have a fixed width and adjustable lengths, no mask purchase required. Lines are continuous and can therefore be diced to any size. In-stock lengths are in 0.010" (0.254mm) increments, up to 0.500" (12.70mm).

Note: By design, these parts may occasionally have burrs/tails since ATP is dicing through Au. There is no pull back in these designs.

ATP will guarantee to MIL-STD-883, Method 2011.10, Test Condition D, using a 1mil wire, on ATP standard products.

Material: Asfired Alumina 99.6% (polished Alumina available upon request)

Metallization front and back sides:

TiW = 300–800Å (0.03µm–0.08µm)

Au = 120µ" (3 microns) minimum

Delivery: Ships in 24–48 hours (in-stock lengths only) for Asfired Alumina. Polished Alumina will be special order.

Request a quote for the ATP Microstrip Transmission Lines. Select the Request For Quote button, at right, and request quotes for up to ten items.

Single Transmission Lines

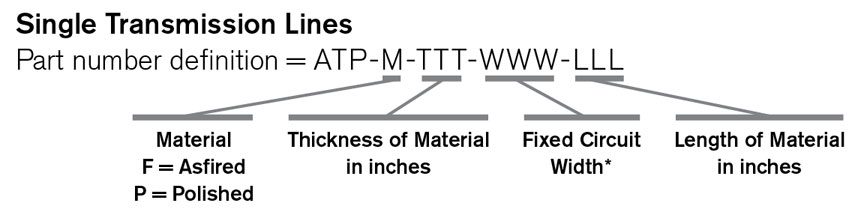

Part number definition =

¹Once thickness of material is determined (TTT), both line width and circuit width (WWW) are fixed. Use the table above to find the Fixed Circuit Width (WWW). Only material (M), thickness of material (TTT) and length of material (LLL) can be specified.

Single Line

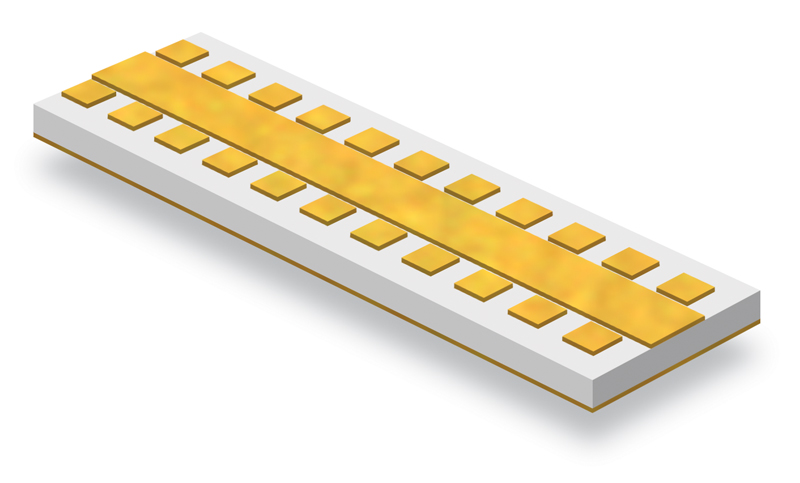

Single Transmission Lines with
Two Rows of Tuning Pads

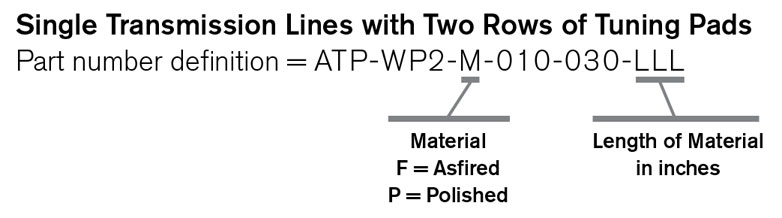

Part number definition =

Single Line with
Two Rows
of Tuning Pads

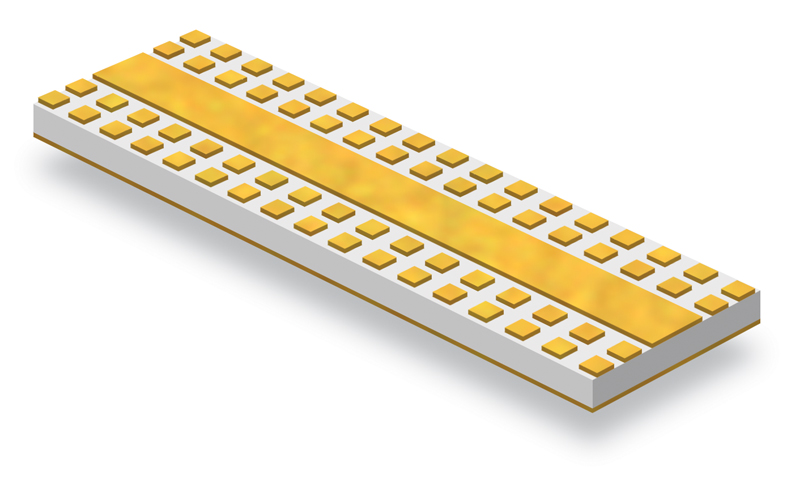

Single Transmission Lines with
Four Rows of Tuning Pads

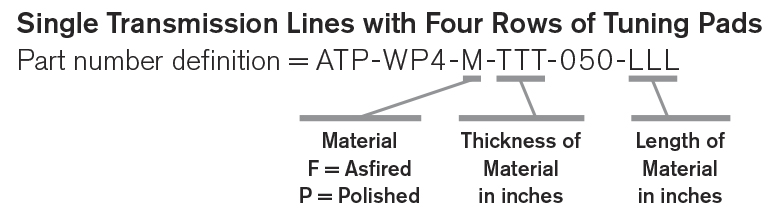

Part number definition =

²Once thickness of material is determined (TTT), both line width and circuit width (0.050") are fixed. Only material (M), thickness of material (TTT) and length of material (LLL) can be specified.

Single Line with
Four Rows
of Tuning Pads

Download Data Sheets in PDF format using the links in each row of the tables above. PDF documents require Adobe Reader.
